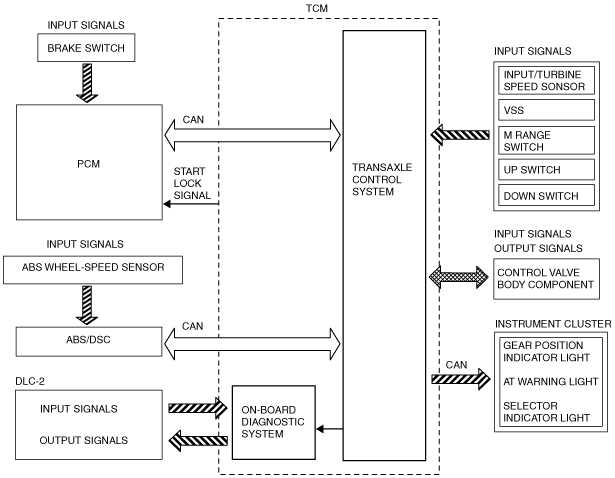

ELECTRONIC CONTROL SYSTEM BLOCK DIAGRAM [AW6A-EL, AW6AX-EL]


id051723100200

•  Based on signals from the sensors, the system controls gear shift and TCC and performs clutch hydraulic control to achieve smooth gear shifting characteristics.
am6xun00000953
