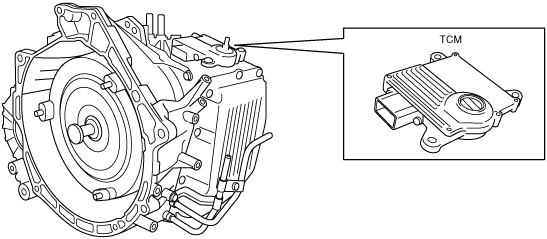

TCM OUTLINE [AW6A-EL, AW6AX-EL]

id051723100600

acxuun00000603

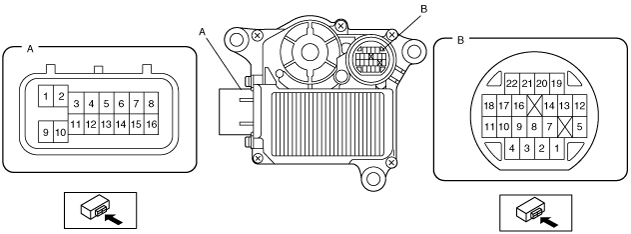

TCM Terminals

acxuun00000604

Terminal No.	Signal	Terminal No.	Signal
A1	B+	B1	Line pressure control solenoid (–)
A2	Blank	B2	Shift solenoid B
A3	Manual up	B3	Line pressure control solenoid (+)
A4	Manual down	B4	TCC control solenoid (–)
A5	Starter lock	B5	Shift solenoid A
A6	CAN_L	B6	Blank
A7	M range	B7	TFT sensor (–)
A8	Blank	B8	TFT sensor (+)
A9	TCM GND	B9	TCC control solenoid (+)
A10	Blank	B10	Shift solenoid C (–)
A11	IG1	B11	Shift solenoid C (+)
A12	Blank	B12	Input/turbine speed sensor (+)
A13	Back-up light relay	B13	Input/turbine speed sensor (–)
A14	CAN_H	B14	Shift solenoid E (+)
A15	Blank	B15	Blank
A16	Blank	B16	Shift solenoid F (–)
—	—	B17	Shift solenoid D (+)
—	—	B18	Shift solenoid D (–)
—	—	B19	VSS (+)
—	—	B20	VSS (–)
—	—	B21	Shift solenoid F (+)
—	—	B22	Shift solenoid E (–)
