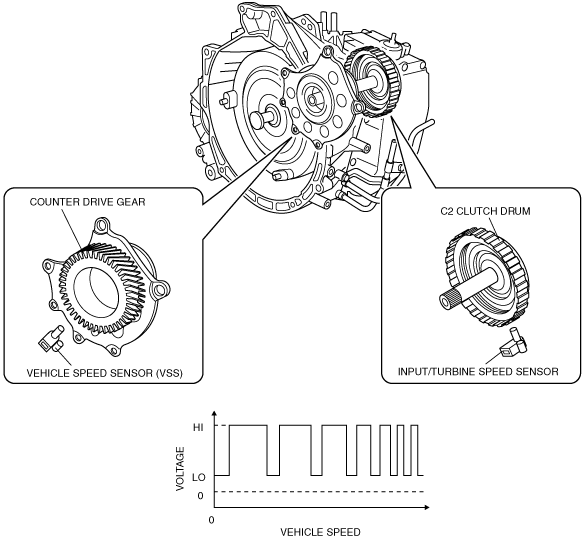

•  The speed sensors are installed in the transaxle case. Input/turbine speed sensor detects revolutions of the intermediate shaft’s C2 clutch drum as input shaft revolutions. Vehicle speed sensor (VSS) detects the counter drive gear as output shaft revolutions. These signals are transmitted to the TCM. Based on those signals, the TCM controls engine torque, shift timing, and TCC.
