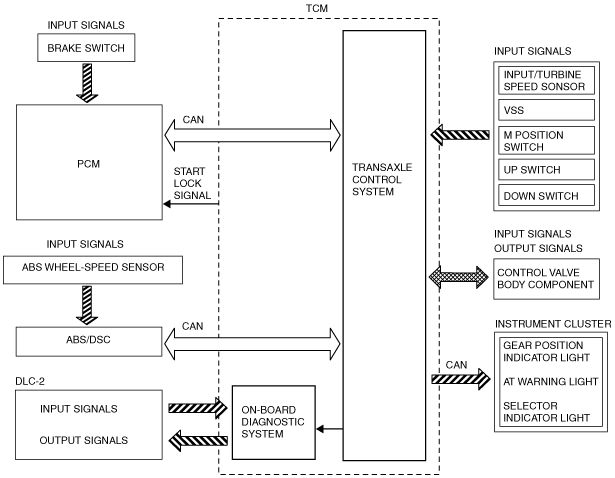

ELECTRONIC CONTROL SYSTEM BLOCK DIAGRAM [AY6A-EL, AY6AX-EL]


id0517k3223400

•  Based on signals from the sensors, the system controls gear shift and TCC and performs hydraulic clutch control to achieve smooth gear shifting characteristics.
ac9wzn00000710
