TCM REMOVAL/INSTALLATION [AY6A-EL, AY6AX-EL]

id0517k3331000

Caution
•  Water or foreign objects entering the connector can cause a poor connection or corrosion. Be sure not to drop water or foreign objects on the connector when disconnecting it.
•  Do not damage the terminals.

1.  Disconnect the negative battery cable.

2.  Remove the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Disconnect the TCM connector.

4.  Remove the clip from the selector cable and disconnect the selector cable from manual shaft lever.

am6xuw00004295

5.  Set the adjustable wrench as shown in the figure to hold the manual shaft lever.

ac9uuw00003935

6.  Remove the manual shaft nut, washer and manual shaft lever.

am6xuw00004296

Caution
•  Do not use an impact wrench. Hold the manual shaft lever when removing the manual shaft nut, or the transaxle may be damaged.

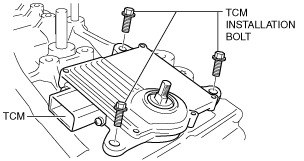

7.  Remove the TCM.

ac9uuw00003936

Caution
•  Do not touch the terminals.
ac9uuw00001971

8.  Inspect the condition of the connector pin of the coupler component (foreign material, bent pins, broken pins) and O-ring after the TCM is removed.

am6xuw00004289

9.  Remove the O-ring from the coupler component.

am6xuw00004290

10.  Install a new O-ring to the coupler component.

am6xuw00004290

Caution
•  Do not apply ATF to the O-ring.

11.  Align the transaxle case and coupler component connector.

ac9uuw00003937

12.  Be sure to match the position of the TCM marking.

am6xuw00004123

Caution
•  Do not turn more than 60° from the marking.

13.  Install the TCM.

14.  Verify the correct positioning of the TCM and coupler component.

am6xuw00004124

15.  Tighten the TCM installation bolts.

ac9uuw00003936

Tightening torque
20—29 N·m {2.1—2.9 kgf·m, 15—21 ft·lbf}

16.  Install the manual shaft lever, washer and manual shaft nut.

am6xuw00004296

17.  Set the adjustable wrench as shown in the figure to hold the manual shaft lever.

ac9uuw00003935

Caution
•  Do not use an impact wrench. Hold the manual shaft lever when installing the manual shaft nut, or the transaxle may be damaged.

18.  Tighten the manual shaft nut.

Tightening torque
10—14 N·m {102—142 kgf·cm, 89—123 in·lbf}

19.  Install the clip to the selector cable as shown in the figure.

ac9uuw00003938

20.  Shift the selector lever to P position.

21.  Turn the manual shaft lever to P position.

22.  Install the selector cable to the manual shaft lever.

ac9uuw00003939

23.  Connect the TCM connector.

24.  Install the fresh-air duct and air cleaner component as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

25.  Connect the negative battery cable.

26.  Perform the “TCM NEUTRAL POSITION LEARNING”. (See TCM NEUTRAL POSITION LEARNING [AY6A-EL, AY6AX-EL].)
