SELECTOR LEVER COMPONENT INSPECTION

id051800800600

1.  Disconnect the negative battery cable.

2.  Remove the center console.

3.  Remove the dashboard completely. (See DASHBOARD REMOVAL/INSTALLATION.)

4.  Disconnect the selector lever component connector.

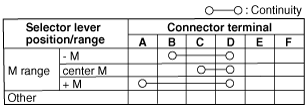

5.  Inspect for continuity at the selector lever component.

ac9uuw00002020

•  If there is any malfunction, adjust the selector cable. (See SELECTOR CABLE ADJUSTMENT.)

ac9uuw00002021
