DTC 22

id070200803400

DTC 22

Front airflow mode actuator (potentiometer) (past)

POSSIBLE CAUSE

•  Front airflow mode actuator malfunction

•  Open circuit between front airflow mode actuator and front climate control unit

•  Short circuit between front airflow mode actuator (terminal E) and front climate control unit (terminal 2E: 16-pin)

DTC 22	Front airflow mode actuator (potentiometer) (past)
POSSIBLE CAUSE	• Front airflow mode actuator malfunction • Open circuit between front airflow mode actuator and front climate control unit • Short circuit between front airflow mode actuator (terminal E) and front climate control unit (terminal 2E: 16-pin)

Diagnostic Procedure

STEP	INSPECTION		ACTION
1	• Inspect front airflow mode actuator. (See FRONT AIRFLOW MODE ACTUATOR INSPECTION.) • Is it okay?	Yes	Go to the next step.
1		No	Replace front airflow mode actuator. (See FRONT AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION.)

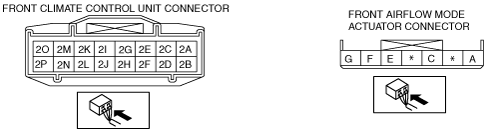

2	• Disconnect front climate control unit connector (16-pin) and front airflow mode actuator connector. • Is there open circuit between following terminals of front climate control unit connector (16-pin) and front airflow mode actuator connector? ― 2B—A ― 2E—E ― 2P—C	Yes	Repair wiring harness.
2		No	Go to the next step.
3	• Is there short circuit to ground between terminal 2E of front climate control unit connector (16-pin) and terminal E of front airflow mode actuator connector?	Yes	Repair wiring harness.
3		No	This system is normal at present. (Erase the past failure from memory.)
