REAR COOLER DUCT REMOVAL/INSTALLATION

id071100803100

1.  Disconnect the negative battery cable.

2.  Remove the console cover. (See CONSOLE COVER REMOVAL/INSTALLATION.)

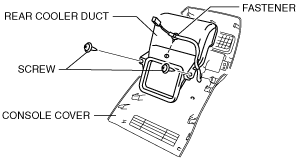

3.  Remove the fastener.

4.  Remove the screws.

ac9wzw00000922

5.  Remove the rear cooler duct.

6.  Install in the reverse order of removal.
