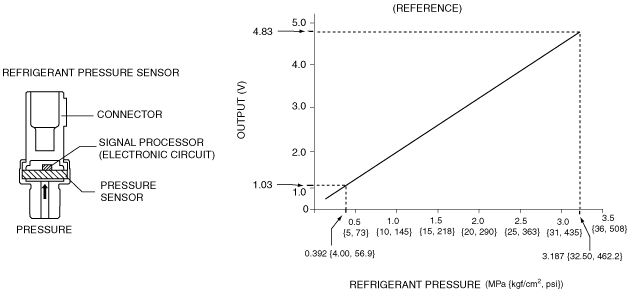

•  A capacitance type A/C pressure switch, which converts refrigerant pressure into a linear electric signal, has been adopted.

•  Consists of a pressure detecting part and signal processing part.

•  The pressure detecting part is a variable capacity condenser which changes capacitance according to the pressure.

•  The signal processing part detects the capacitance of pressure detecting part, converts it to voltage, then outputs it to the PCM.

ac9uun00000775

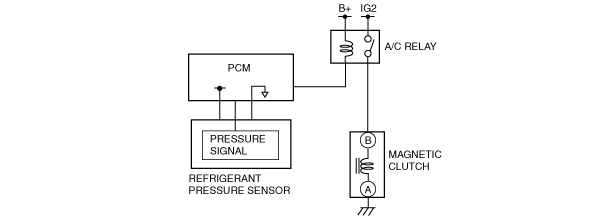

•  When pressure is abnormal, the PCM cuts the A/C relay thereby stopping the A/C compressor.

ac9uun00000776

•  There is a clearance between the movable ceramic diaphragm and the ceramic base, and each side has an electrode.

•  When pressure is applied from the ceramic diaphragm side, the ceramic diaphragm deforms, and the clearance between the electrodes changes. As a result, capacitance is changed and pressure is detected.
