REFRIGERANT PRESSURE SWITCH INSPECTION


id074000802700

1.  Install the manifold.

2.  Disconnect the refrigerant pressure switch connector.

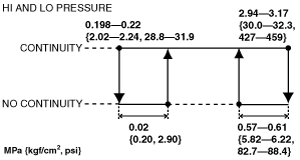

3.  Verify the high-pressure side reading of the gauge and continuity between the refrigerant pressure switch terminals.

•  If there is any malfunction, replace the refrigerant pressure switch.
am8rrw00000837
am8rrw00000838
am8rrw00000839
