FRONT EVAPORATOR TEMPERATURE SENSOR INSPECTION

id074000804100

1.  Set the fan speed MAX HI.

2.  Set the temperature control at MAX COLD.

3.  Set the RECIRCULATE mode.

4.  Turn the A/C switch off.

5.  Close all doors and windows.

6.  Wait for 5 min.

7.  Remove the glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

8.  Disconnect the front evaporator temperature sensor connector.

9.  Measure the temperature at the blower inlet.

10.  Measure the resistance between the front evaporator temperature sensor terminals.

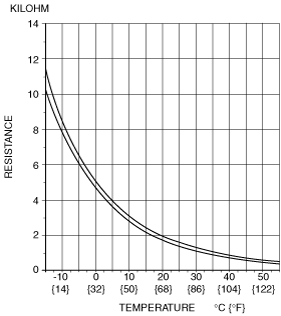

am8rrw00000822

•  If the resistance is not as shown in the graph, replace the front evaporator temperature sensor.
