REAR CLIMATE CONTROL UNIT INSPECTION

id074000805500

1. Connect the rear climate control unit connector.

2. Turn the ignition switch to the ON position.

3. Connect the negative (-) lead of the tester to body ground.

4. By inserting the positive (+) lead of the tester into each rear climate control unit terminal, measure the voltage according to the terminal voltage table.

• If there is any malfunction, inspect the parts under “Inspection item (s)”.

― If the parts under “Inspection item (s)” are found to be normal, replace the rear climate control unit.

Terminal voltage table (Reference)

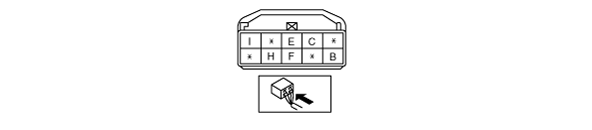

ac9wzw00000926

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item (s)

A

—

—

—

—

—

B

IG2

Front climate control unit

Ignition switch is at ON position

B+

•  Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: B—3B)

•  Front climate control unit: terminal voltage (1W, 1X)

Ignition switch is at LOCK position

1.0 or less

C

Rear climate control unit communication

Front climate control unit

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

D

—

—

—

—

—

E

Rear climate control unit communication

Front climate control unit

Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.

—

F

TNS signal

Front climate control unit

Turn the headlight switch to the off position

1.0 or less

•  Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: F—3F)

•  ILLUMI 10 A fuse

•  TNS relay

•  Headlight switch

Turn the headlight switch to the TNS position

B+

G

—

—

—

—

—

H

Panel light control input

Front climate control unit

Turn the headlight switch to the TNS position and panel light control switch at MAX

1.0 or less

•  Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: H—3H)

•  Instrument cluster

Turn the headlight switch to the TNS position and panel light control switch at MIN

Approx. 6.5

I

Ground

Front climate control unit

Under any condition: Inspect for continuity to ground

1.0 or less

•  Wiring harness: continuity (Rear climate control unit—front climate control unit: I—3I)

J

—

—

—

—

—

Terminal	Signal name	Connected to	Measurement condition	Voltage (V)	Inspection item (s)
A	—	—	—	—	—
B	IG2	Front climate control unit	Ignition switch is at ON position	B+	• Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: B—3B) • Front climate control unit: terminal voltage (1W, 1X)
B	IG2	Front climate control unit	Ignition switch is at LOCK position	1.0 or less
C	Rear climate control unit communication	Front climate control unit	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.		—
D	—	—	—	—	—
E	Rear climate control unit communication	Front climate control unit	Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.		—
F	TNS signal	Front climate control unit	Turn the headlight switch to the off position	1.0 or less	• Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: F—3F) • ILLUMI 10 A fuse • TNS relay • Headlight switch
F	TNS signal	Front climate control unit	Turn the headlight switch to the TNS position	B+
G	—	—	—	—	—
H	Panel light control input	Front climate control unit	Turn the headlight switch to the TNS position and panel light control switch at MAX	1.0 or less	• Wiring harness: continuity, short circuit (Rear climate control unit—front climate control unit: H—3H) • Instrument cluster
H	Panel light control input	Front climate control unit	Turn the headlight switch to the TNS position and panel light control switch at MIN	Approx. 6.5
I	Ground	Front climate control unit	Under any condition: Inspect for continuity to ground	1.0 or less	• Wiring harness: continuity (Rear climate control unit—front climate control unit: I—3I)
J	—	—	—	—	—
