SECOND-ROW BUCKLE REMOVAL/INSTALLATION

id081100802100

LH

1.  Remove the second-row seat (LH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

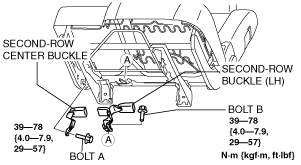

2.  Remove the bolt A.

ac9wzw00000948

3.  Remove the second-row center buckle.

4.  Remove the second-row seat (LH) seat cushion pad. (See SECOND-ROW SEAT DISASSEMBLY/ASSEMBLY.)

5.  Remove the bolt B.

6.  Remove the second-row buckle (LH).

7.  Install in the reverse order of removal.

RH

1.  Remove the second-row seat (RH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

2.  Remove in bolt.

ac9wzw00000949

3.  Remove the second-row buckle (RH).

4.  Install in the reverse order of removal.
