PID/DATA MONITOR TABLE [POWER LIFTGATE (PLG) SYSTEM]

id0902e9345900

PID name (definition)

Unit/Condition

Operation Condition (Reference)

DTC_CNT

(Number of continuous DTCs)

—

Indicates number of DTC

LAT_FULL

(Liftgate latch and lock actuator (full latch switch))

Off / On

•  Full latch switch on: on

•  Other: off

LAT_HALF

(Liftgate latch and lock actuator (half latch switch))

Off / On

•  Half latch switch on: on

•  Other: off

LAT_RTN

(Liftgate latch and lock actuator (return switch))

Off / On

•  Return switch on: on

•  Other: off

MTR_CLS_CL

(Closure motor (CLOSE))

Off / On

•  Closure motor (CLOSE) operation: on

•  Other: off

MTR_CLS_OP

(Closure motor (OPEN))

Off / On

•  Closure motor (OPEN) operation: on

•  Other: off

MTR_PLG_C

(PLG motor current)

A

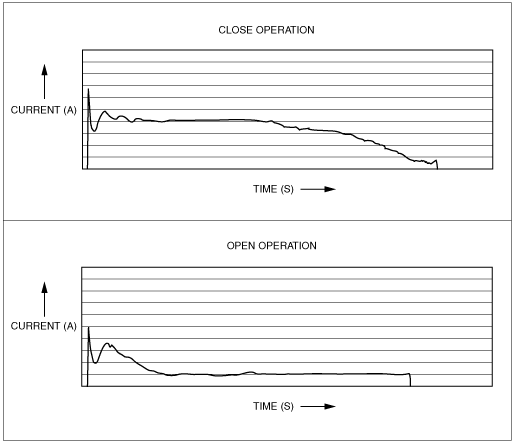

•  Voltage: Refer to graph 1

Note

•  The values in the graph are a reference showing the relation between the elapsed period and voltage. The values change according to vehicle conditions/status, temperature, and battery voltage.

MTR_PLG_CL

(PLG motor (CLOSE))

Off / On

•  PLG motor (CLOSE) operation: on

•  Other: off

MTR_PLG_OP

(PLG motor (OPEN))

Off / On

•  PLG motor (OPEN) operation: on

•  Other: off

PWR_IG1

(Ignition 1 (IG1) electric source)

Off / On

•  Ignition switch is at ON: on

•  Other: off

SW_CCL

(Liftgate latch switch)

Off / On

•  Unlatch (liftgate is open): on

•  Latch (liftgate is closed): off

SW_MAIN

(PLG front switch)

Off / On

•  PLG front switch on position: on

•  Other: off

SW_SUB

(PLG rear switch)

Off / On

•  PLG rear switch on position: on

•  Other: off

TCH_L_FLT

(PLG touch sensor (LH) failure)

O.K. / Fault

•  PLG touch sensor (LH) normal: O.K.

•  PLG touch sensor (LH) malfunction: Fault

TCH_L_ST

(PLG touch sensor (LH) condition)

Off / On

•  PLG touch sensor (LH) on: on

•  Other: off

TCH_L_V

(PLG touch sensor (LH) voltage)

V

Normal with no obstruction: 2.5 V

TCH_R_FLT

(PLG touch sensor (RH) failure)

O.K. / Fault

•  PLG touch sensor (RH) normal: O.K.

•  PLG touch sensor (RH) malfunction: Fault

TCH_R_ST

(PLG touch sensor (RH) condition)

Off / On

•  PLG touch sensor (RH) on: on

•  Other: off

TCH_R_V

(PLG touch sensor (RH) voltage)

V

Normal with no obstruction: 2.5 V

VPWR

(Module supply voltage)

V

Under any condition: V_B

PID name (definition)	Unit/Condition	Operation Condition (Reference)
DTC_CNT (Number of continuous DTCs)	—	Indicates number of DTC
LAT_FULL (Liftgate latch and lock actuator (full latch switch))	Off / On	• Full latch switch on: on • Other: off
LAT_HALF (Liftgate latch and lock actuator (half latch switch))	Off / On	• Half latch switch on: on • Other: off
LAT_RTN (Liftgate latch and lock actuator (return switch))	Off / On	• Return switch on: on • Other: off
MTR_CLS_CL (Closure motor (CLOSE))	Off / On	• Closure motor (CLOSE) operation: on • Other: off
MTR_CLS_OP (Closure motor (OPEN))	Off / On	• Closure motor (OPEN) operation: on • Other: off
MTR_PLG_C (PLG motor current)	A	• Voltage: Refer to graph 1 Note • The values in the graph are a reference showing the relation between the elapsed period and voltage. The values change according to vehicle conditions/status, temperature, and battery voltage.
MTR_PLG_CL (PLG motor (CLOSE))	Off / On	• PLG motor (CLOSE) operation: on • Other: off
MTR_PLG_OP (PLG motor (OPEN))	Off / On	• PLG motor (OPEN) operation: on • Other: off
PWR_IG1 (Ignition 1 (IG1) electric source)	Off / On	• Ignition switch is at ON: on • Other: off
SW_CCL (Liftgate latch switch)	Off / On	• Unlatch (liftgate is open): on • Latch (liftgate is closed): off
SW_MAIN (PLG front switch)	Off / On	• PLG front switch on position: on • Other: off
SW_SUB (PLG rear switch)	Off / On	• PLG rear switch on position: on • Other: off
TCH_L_FLT (PLG touch sensor (LH) failure)	O.K. / Fault	• PLG touch sensor (LH) normal: O.K. • PLG touch sensor (LH) malfunction: Fault
TCH_L_ST (PLG touch sensor (LH) condition)	Off / On	• PLG touch sensor (LH) on: on • Other: off
TCH_L_V (PLG touch sensor (LH) voltage)	V	Normal with no obstruction: 2.5 V
TCH_R_FLT (PLG touch sensor (RH) failure)	O.K. / Fault	• PLG touch sensor (RH) normal: O.K. • PLG touch sensor (RH) malfunction: Fault
TCH_R_ST (PLG touch sensor (RH) condition)	Off / On	• PLG touch sensor (RH) on: on • Other: off
TCH_R_V (PLG touch sensor (RH) voltage)	V	Normal with no obstruction: 2.5 V
VPWR (Module supply voltage)	V	Under any condition: V_B

ac9uuw00002344
