DTC B241A [POWER LIFTGATE (PLG) SYSTEM]
id0902e9381200
|
DTC B241A |
Touch sensor circuit malfunction |
|---|---|
|
DETECTION CONDITION
|
A short circuit to ground in the PLG touch sensor (RH/LH) continues for 5 min or more.
|
|
POSSIBLE CAUSE
|
• PLG touch sensor malfunction

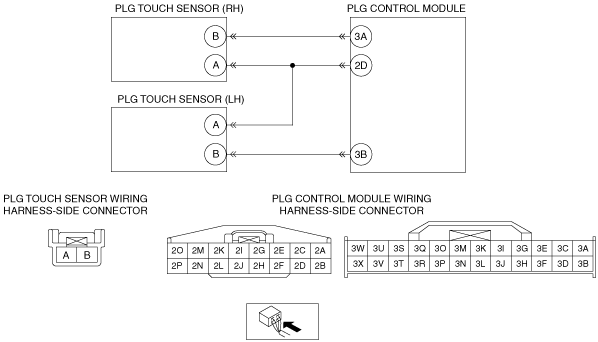

• Short to GND in wiring harness between PLG control module terminal 3A and PLG touch sensor (RH) terminal B
• Short to GND in wiring harness between PLG control module terminal 3B and PLG touch sensor (LH) terminal B
• PLG control module malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT PLG TOUCH SENSOR
• Inspect the PLG touch sensor.
• Is the touch sensor normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the PLG touch sensor.
Go to Step 3.
|
||
|
2
|
INSPECT THE FOLLOWING WIRING HARNESSES
• Disconnect the PLG control module connector.
• Disconnect the PLG touch sensor connector.
• Inspect for a short circuit to ground system between the following wiring harnesses:
• Is the wiring harness normal?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness.
Go to the next step.
|
||
|
3
|
VERIFY CORRECTION COMPLETED
• Reconnect the disconnected connector.
• Clear the DTC.
• Is DTC B241A stored after 5 min or more have elapsed?
|
Yes
|
Replace the PLG control module.
|
|
No
|
DTC troubleshooting completed.
|
||
