DTC B1566 [BCM]
id0902f5838200
|
DTC B1566 |
Door ajar circuit short to ground |
|---|---|
|
DETECTION CONDITION
|

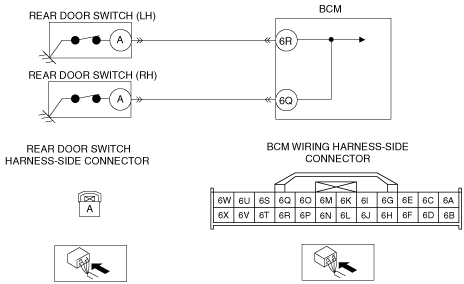

Short to GND in wiring harness between BCM and rear door switches
|
|
POSSIBLE CAUSE
|
• Short to GND in wiring harness between BCM terminal 6R and rear door switch (LH) terminal A
• Short to GND in wiring harness between BCM terminal 6Q and rear door switch (RH) terminal A
• Rear door switch malfunction
• BCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT REAR DOOR SWITCH CONNECTOR
• Turn the ignition switch off.
• Disconnect the rear door switch connector.
• Inspect the rear door switch connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT BCM CONNECTOR
• Disconnect the BCM connector.
• Inspect the BCM connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT REAR DOOR SWITCH SIGNAL CIRCUIT FOR SHORT TO GND
• Inspect for continuity between BCM terminal 6R, 6Q (wiring harness-side) body GND.
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness for a possible short to GND, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
4
|
INSPECT REAR DOOR SWITCH
• Inspect the rear door switch.
(See DOOR SWITCH INSPECTION.)
• Is there any malfunction?
|
Yes
|
Replace the rear door switch, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the BCM memory using the M-MDS.
• Perform the BCM DTC inspection.
(See DTC INSPECTION [BCM].)
• Is the same DTC present?
|
Yes
|
Replace the BCM.
|
|
No
|
DTC troubleshooting completed.
|
||
