DTC C1284 [BCM]
id0902f5838400
|
DTC C1284 |
Oil pressure switch circuit failure |
|---|---|
|
DETECTION CONDITION
|

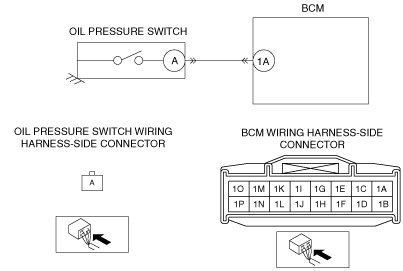

Open circuit in wiring harness between BCM and oil pressure switch
|
|
POSSIBLE CAUSE
|
• Oil pressure switch connector malfunction
• BCM connector malfunction
• Open circuit in wiring harness between BCM terminal 1A and oil pressure switch terminal A
• Oil pressure switch malfunction
• BCM malfunction
|
 |
|
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT OIL PRESSURE SWITCH CONNECTOR
• Turn the ignition switch off.
• Disconnect the oil pressure switch connector.
• Inspect the oil pressure switch connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT BCM CONNECTOR
• Disconnect the BCM connector.
• Inspect the BCM connector terminals for poor connection (such as damaged/pulled-out pins, and corrosion).
• Is there any malfunction?
|
Yes
|
Repair or replace the terminal, then go to Step 5.
|
|
No
|
Go to the next step.
|
||
|
3
|
INSPECT OIL PRESSURE SWITCH SIGNAL CIRCUIT FOR OPEN CIRCUIT
• Inspect for continuity between BCM terminal 1A (wiring harness-side) and oil pressure switch terminal A (wiring harness-side).
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness for a possible open circuit, then go to Step 5.
|
||
|
4
|
INSPECT OIL PRESSURE SWITCH
• Inspect the oil pressure switch.
• Is there any malfunction?
|
Yes
|
Replace the oil pressure switch, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
5
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the BCM memory using the M-MDS.
• Perform the BCM DTC inspection.
(See DTC INSPECTION [BCM].)
• Is the same DTC present?
|
Yes
|
Replace the BCM.
|
|
No
|
DTC troubleshooting completed.
|
||
