DIAGNOSTIC ASSIST FUNCTION [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

id0902g8804500

Starting Procedure

1.  Turn the ignition switch to the ACC or ON position.

2.  Turn the audio power to on.

3.  While pressing the POWER/VOLUME button, simultaneously press the TUNE/AUDIO button for 2 s or more.

ac9uuw00002930

4.  Press the “Diagnostic assist code input switch”, and input the diagnostic assist code.

5.  Select “ENTER”.

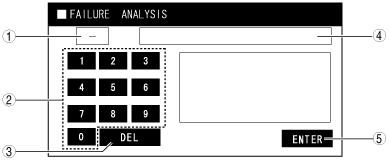

Diagnostic assist code input screen

aprjjw00002670

No.	Name	Content/function
1	Diagnostic assist code	Display the diagnostic assist code.
2	Diagnostic assist code input switch	Input the diagnostic assist code.
3	DEL	Diagnostic assist code clear
4	Diagnostic content	Display the diagnostic content.
5	ENTER	Go to the diagnostic assist function.

6.  Press the POWER/VOLUME button to return to the diagnostic assist code input screen.

7.  Press the POWER/VOLUME button to release the diagnostic assist function.

Diagnostic Assist Code Table

No.	Content/function
37	Diagnostic Assist Code “37” connection Condition Verification
38	Diagnostic Assist Code “38” Software Version Verification
39	Diagnostic Assist Code “39” Password Reset

Diagnostic Assist Code “37” connection Condition Verification

1.  Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “37”.

2.  Select “ENTER”.

Inspection	Display	Measures
•  Launch the connection condition mode. •  Verify the connection condition.	AVN CONNECT	The Bluetooth unit connection condition is normal.
	AVN CON ERR	Verify the Bluetooth unit connection condition. (See Bluetooth UNIT REMOVAL/INSTALLATION.)

3.  Press the POWER/VOLUME button to return to the diagnostic assist code input screen.

4.  Press the POWER/VOLUME button to release the diagnostic assist function.

Diagnostic Assist Code “38” Software Version Verification

1.  Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “38”.

2.  Select “ENTER”.

Inspection	Display	Measures
•  Launch the software version verification mode. •  Software version verification.	Display the software version.	—

3.  Press the POWER/VOLUME button to return to the diagnostic assist code input screen.

4.  Press the POWER/VOLUME button to release the diagnostic assist function.

Diagnostic Assist Code “39” Password Reset

1.  Press the “Diagnostic assist code input switch”, and input the diagnostic assist code “39”.

2.  Select “ENTER”.

Inspection	Display	Measures
•  Launch the password reset mode.	PASSWD CLEAR	—

3.  Press the POWER/VOLUME button to return to the diagnostic assist code input screen.

4.  Press the POWER/VOLUME button to release the diagnostic assist function.
