DTC U3003:16 [POSITION MEMORY CONTROL SYSTEM]


id0902z8969600

DTC U3003:16

Battery voltage low

DETECTION CONDITION
Voltage from battery power supply remains at 9 V or less for 5 s or more
POSSIBLE CAUSE
•  Battery malfunction
•  Open or short circuit in wiring harness between position memory control module and battery
•  Open or short circuit in wiring harness between battery module and GND

Diagnostic procedure

STEP

INSPECTION

ACTION

1
INSPECT BATTERY
•  Turn the ignition switch to LOCK position.
•  Disconnect the negative battery cable.
•  Check the battery voltage.
•  Is there any malfunction?
Yes
Replace the battery.
Go to the next step.
No
Go to the next step.
2
INSPECT POSITON MEMORY CONTROL MODULE CONNECTOR CONDITION
•  Disconnect the position memory control module connector.
•  Inspect the connector and terminals (corrosion, damage, pin disconnection).
•  Is there any malfunction?
Yes
Repair or replace the connector or terminals, then go to the next step.
No
Go to the next step.
3
INSPECT POSITION MEMORY CONTROL MODULE CIRCUIT FOR OPEN CIRCUIT
•  Disconnect the positive battery cable.
•  Position memory control module connector is disconnected.
•  Inspect for continuity between the following terminals (wiring harness-side):

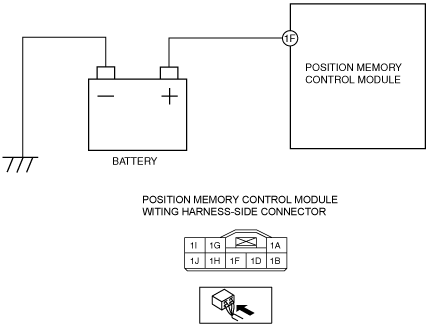

―  Positive battery terminal—Position memory control module terminal 1F
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for possible open circuit, then go to the next step.
4
INSPECT NEGATIVE BATTERY CABLE
•  Inspect the negative battery cable.
•  Is there continuity?
Yes
Go to the next step.
No
Repair or replace the wiring harness for possible open circuit, then go to the next step.
5
VERIFY TROUBLESHOOTING COMPLETED
•  Make sure to reconnect all disconnected connectors.
•  Reconnect the positive battery cable.
•  Reconnect the negative battery cable.
•  Clear the DTC using the M-MDS. (See CLEARING DTC [POSITION MEMORY CONTROL SYSTEM].)
•  Switch the ignition to ON.
•  Perform the DTC inspection using the M-MDS.
•  Is the same DTC present?
Yes
Replace the front seat slide adjuster. (See FRONT SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION.)
No
DTC troubleshooting completed.
