AUDIO UNIT RESET PROCEDURE [ENTIRE AUDIO SYSTEM]

id0903e2837700

Caution

•  If the audio unit reset procedure is performed, the audio will be reset to the manufacturer settings and the preset memory set by the customers will be erased. Only perform the audio unit reset if the all of the following conditions have been met.

―  Malfunction cannot be verified or reproduced.

―  DTC is not recorded.

―  Audio unit reset has not been performed in the past.

―  Received consent from the customer that preset memory and other settings set by the customer are to be erased and that the audio system can continue to be used after the audio unit reset is performed.

1.  Turn the ignition switch to the ACC or ON position.

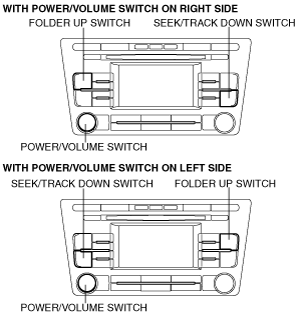

2.  While pressing the POWER/VOLUME switch, simultaneously press the FOLDER up switch and SEEK/TRACK down switch for 3 s or more.

With RDS (radio data system)

ac9wzw00002397

Without RDS (radio data system)

ac9wzw00001531

3.  Verify that the preset memory is erased (audio unit is reset).
