FOREWORD [CD PLAYER/CHANGER]

id0903e5802700

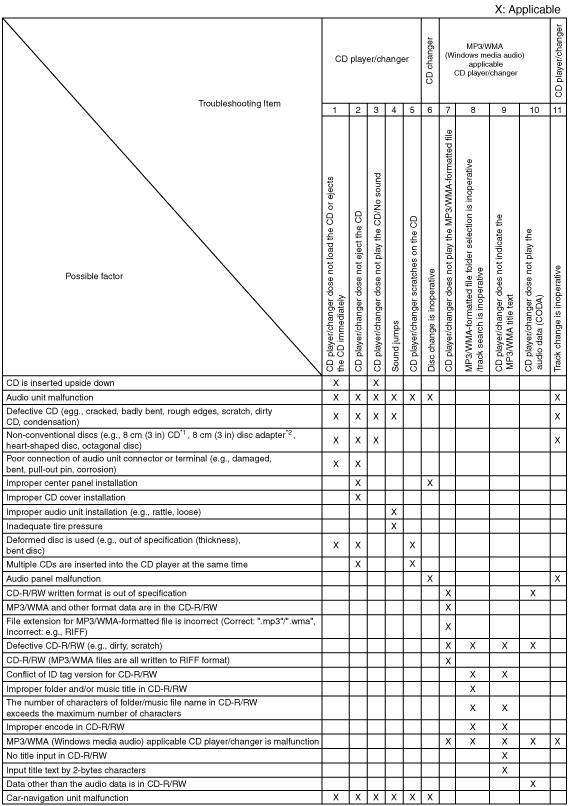

Troubleshooting Index

No.	Items	Symptom	Possible DTC
			Using the M-MDS	Without using M-MDS (On-board diagnostic test mode)
1	CD player/changer	NO.1 CD PLAYER/CHANGER DOES NOT LOAD THE CD OR EJECTS THE CD IMMEDIATELY [CD PLAYER/CHANGER]	B1D19:79	With audio unit •  03:Er01 (without display) •  Device code 22/error code 01 (with display) With car-navigation unit •  Device code 22/error code 01
2		NO.2 CD PLAYER/CHANGER DOES NOT EJECT THE CD [CD PLAYER/CHANGER]	B1D19:79	With audio unit •  03:Er01 (without display) •  Device code 22/error code 01 (with display) With car-navigation unit •  Device code 22/error code 01
3		NO.3 CD PLAYER/CHANGER DOES NOT PLAY THE CD/NO SOUND [CD PLAYER/CHANGER]	B1188:64	With audio unit •  03:Er07 (without display) •  Device code 22/error code 07 (with display) With car-navigation unit •  Device code 22/error code 07
4		NO.4 SOUND JUMPS [CD PLAYER/CHANGER]	B1188:64	With audio unit •  03:Er07 (without display) •  Device code 22/error code 07 (with display) With car-navigation unit •  Device code 22/error code 07
5		NO.5 CD PLAYER/CHANGER SCRATCHES ON THE CD [CD PLAYER/CHANGER]	B1188:64	With audio unit •  03:Er07 (without display) •  Device code 22/error code 07 (with display) With car-navigation unit •  Device code 22/error code 07
6	CD changer	NO.6 DISC CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1188:64	With audio unit •  21:Er19, 03:Er07 (without display) •  Device code 21/error code 19 (with display) •  Device code 22/error code 07 (with display) With car-navigation unit •  Device code 21/error code 19 •  Device code 22/error code 07
7	CD player/changer (MP3/WMA formatted file payback function)	NO.7 CD PLAYER/CHANGER DOES NOT PLAY THE MP3/WMA-FORMATTED FILE [CD PLAYER/CHANGER]	B1188:64	With audio unit •  03:Er07 (without display) •  Device code 22/error code 07 (with display) With car-navigation unit •  Device code 22/error code 07
8		NO.8 MP3/WMA-FORMATTED FILE FOLDER SELECTION IS INOPERATIVE/TRACK SEARCH IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	With audio unit •  03:Er02 (without display) •  Device code 22/error code 02 (with display) With car-navigation unit •  Device code 22/error code 02
9		NO.9 CD PLAYER/CHANGER DOES NOT INDICATE THE MP3/WMA TITLE TEXT [CD PLAYER/CHANGER]	B1D19:71, B1188:64	With audio unit •  03:Er02, 03:Er07 (without display) •  Device code 22/error code 02, 07 (with display) With car-navigation unit •  Device code 22/error code 02, 07
10		NO.10 CD PLAYER/CHANGER DOES NOT PLAY THE AUDIO DATA (CDDA) [CD PLAYER/CHANGER]	B1D19:71, B1188:64	With audio unit •  03:Er02, 03:Er07 (without display) •  Device code 22/error code 02, 07 (with display) With car-navigation unit •  Device code 22/error code 02, 07
11	CD player/changer	NO.11 TRACK CHANGE IS INOPERATIVE [CD PLAYER/CHANGER]	B1D19:71	With audio unit •  03:Er02 (without display) •  Device code 22/error code 02 (with display) With car-navigation unit •  Device code 22/error code 02

ac9wzw00001802
