FRONT BUMPER DISASSEMBLY/ASSEMBLY
id091000800400
1. Remove the front fog light. (Vehicles with front fog lights) (See FRONT FOG LIGHT REMOVAL/INSTALLATION.)
2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.

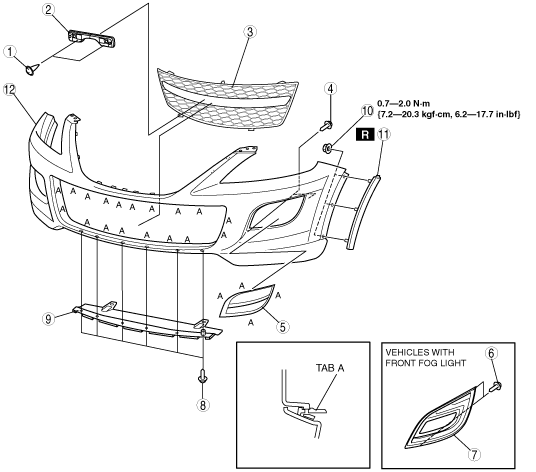

R.H.D.
ac9wzw00001400
|
|
1
|
Screw A
|
|
2
|
Licence plate holder
|
|
3
|
Front bumper mesh
|
|
4
|
Screw B
|
|
5
|
Front fog light hole cover
|
|
6
|
Screw C (Vehicles with front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Screw D
|
|
9
|
Under cover
|
|
10
|
Nut
|
|
11
|
Front over fender lower
|
|
12
|
Front bumper fascia
|

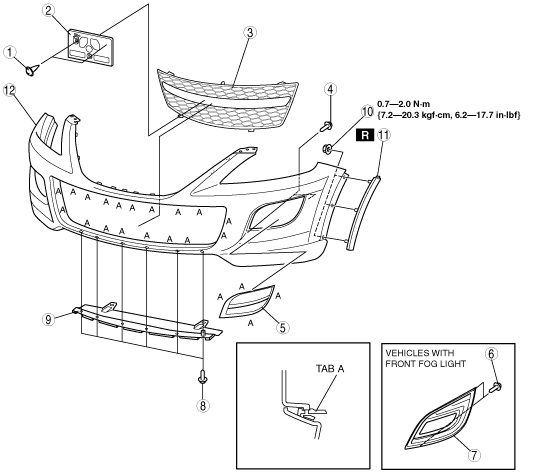

L.H.D.
ac9wzw00001401
|
|
1
|
Screw A
|
|
2
|
Licence plate holder
|
|
3
|
Front bumper mesh
|
|
4
|
Screw B
|
|
5
|
Front fog light hole cover
|
|
6
|
Screw C (Vehicles with front fog light)
|
|
7
|
Front fog light cover (Vehicles with front fog light)
|
|
8
|
Screw D
|
|
9
|
Under cover
|
|
10
|
Nut
|
|
11
|
Front over fender lower
|
|
12
|
Front bumper fascia
|
4. Assemble in the reverse order of disassembly.

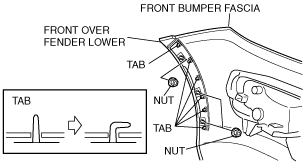

Front Over Fender Lower Assembly Note
1. Attach the front over fender lower to the front bumper fascia with nuts.
ac9uuw00000837
|
2. Use a soldering copper and thermally deform the tab in order to fasten the stiffening rib.
