FRONT BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800600

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

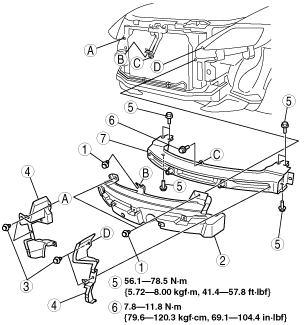

ac9uuw00000865

1	Fastener A
2	Front energy-absorbing foam
3	Fastener B
4	Seal plate
5	Bolt A
6	Bolt B
7	Front bumper reinforcement

4.  Install in the reverse order of removal.
