REAR BUMPER REINFORCEMENT REMOVAL/INSTALLATION

id091000800900

1.  Disconnect the negative battery cable.

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

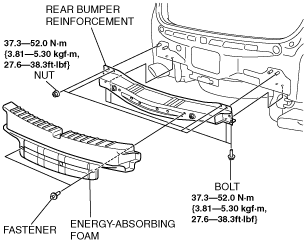

4.  Remove the fasteners, then remove the energy-absorbing foam.

ac9uuw00000871

5.  Remove the bolts and nuts, then remove the rear bumper reinforcement.

6.  Install in the reverse order of removal.
