COWL PANEL REMOVAL/INSTALLATION

id091000802000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION)

(3)  Windshield wiper motor (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION)

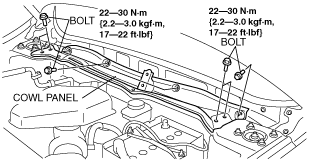

3.  Remove the bolts, then remove the cowl panel.

ac9wzw00002500

4.  Install in the reverse order of removal.
