OUTER MIRROR GLASS INSTALLATION

id091200002900

1.  Connect the heated outer mirror connectors. (vehicles with heated outer mirrors)

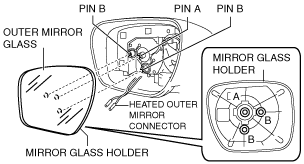

2.  Press part A on the outer mirror glass and install pin A.

ac9wzw00001664

3.  Press part B on the outer mirror glass and install pins B.
