POWER OUTER MIRROR SWITCH INSPECTION

id091200003400

With Power Seat System

1. Disconnect the negative battery cable.

2. The power outer mirror switch is integrated with the power window main switch. (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)

3. Connect the power outer mirror switch connector.

4. Connect the negative battery cable.

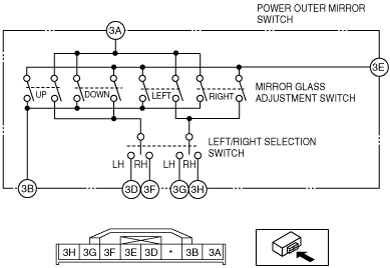

5. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.

• If not as indicated in the table, replace the power outer mirror switch. (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.)

ac9wzw00000838

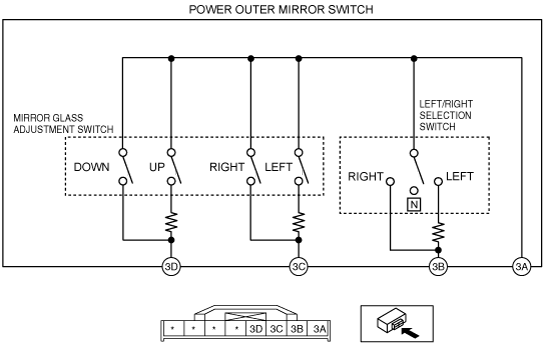

ac9wzw00000839

Without Power Seat System
