AUTO-DIMMING MIRROR REMOVAL

id091200004600

1.  Remove the rain sensor cover. (See RAIN SENSOR REMOVAL/INSTALLATION.)

2.  Remove the rain sensor. (See RAIN SENSOR REMOVAL/INSTALLATION.)

3.  Disconnect the auto-dimming mirror connector.

ac9wzw00001676

4.  Make a tool as shown in the figure using wire.

ac9wzw00001677

Caution

•  Using the tool with bare hands can cause injury. Always wear gloves when using the tool.

•  To prevent damage to the lens, do not use a flathead screwdriver.

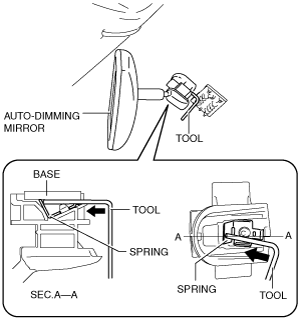

5.  Insert the tool to the position shown in the figure and press the center part of the spring.

ac9wzw00001678

Caution

•  Perform the procedure while being careful not to damage the lens.

6.  Pull out the rearview mirror toward the vehicle rear.

ac9wzw00001679

Caution

•  When removing the rearview mirror, it may hit the headliner and cause a damage. Hold the rearview mirror with hands and be careful not to contact it with the headliner.
