POWER OUTER MIRROR OPERATION
id091200007300
With Power Seat System
Mirror glass adjustment
-
• The left/right selection switch establishes left or right side outer mirror circuit and current is supplied in either one of the four directions according to the position of the mirror glass adjustment switch. Due to this, the motor rotates either up or down, left or right.

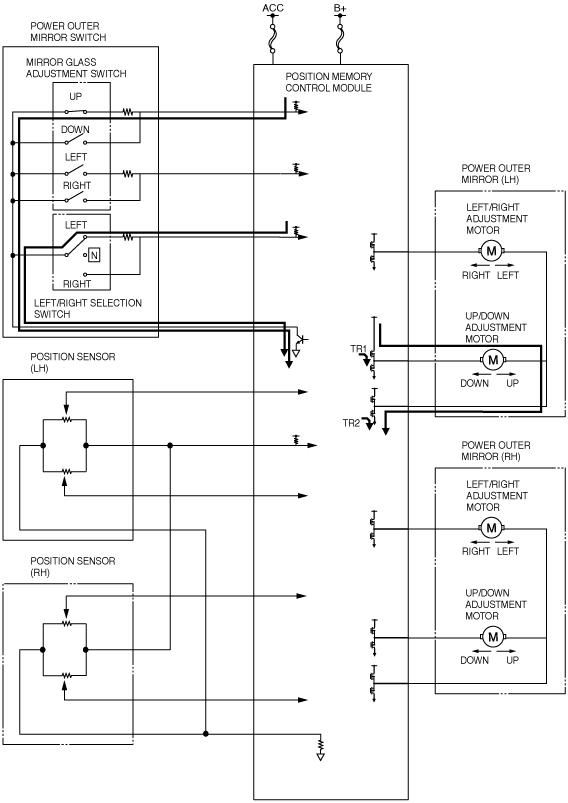

Left side outer mirror is moved upward
1. When the power outer mirror switch is pressed, the outer mirror glass adjustment signal is input to the position memory control module.
2. When the outer mirror glass adjustment signal is input, the position memory control module turns on the TR1 and TR2 to operate the power outer mirror.
Power outer mirrors with reverse tilt down
-
1. Switch the left/right selection switch to the left or right side.
2. Shift the selector lever to the R position while depressing the brake pedal (1). The outside mirrors tilt downward automatically.
Without Power Seat System
Mirror glass adjustment
-
• The left/right selection switch establishes left or right side outer mirror circuit and current is supplied in either one of the four directions according to the position of the mirror glass adjustment switch. Due to this, the motor rotates either up or down, left or right.

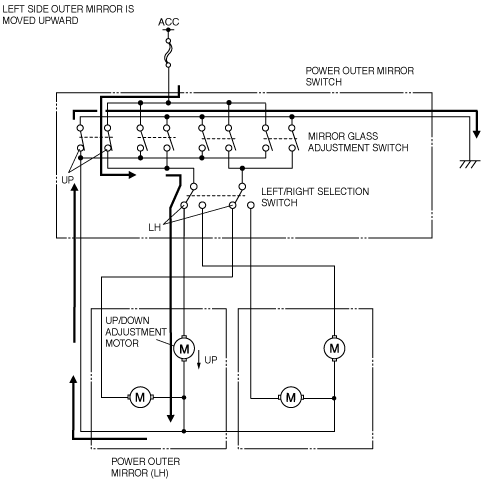

Left side outer mirror is moved upward
