FRONT SEAT SIDE COVER REMOVAL/INSTALLATION

id091300433300

Warning

• Handling the front seats improperly can accidentally deploy the side air bag, which may seriously injure you. Read air bag system service warnings and cautions before handling the front seats. (See AIR BAG SYSTEM SERVICE WARNINGS) (See AIR BAG SYSTEM SERVICE CAUTIONS)

Caution

• After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

• Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

• When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

Driver side seat (Front Door side)

Vehicles with power seat system

1. Switch the ignition to off.

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

3. Disconnect the negative battery cable and wait 1 min. or more.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Pull the power seat switch knobs in the direction of arrow, while remove the hooks.

ac9wzw00001267

6. Pull the front seat side cover in the direction of arrow (1), shown in the figure to disengage the hooks and clips. (See Power Seat Switch Wiring Harness Removal Note.) (See Power Seat Switch Wiring Harness Installation Note.)

ac9wzw00001268

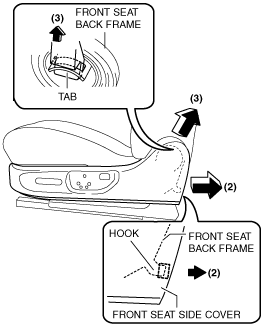

7. Pull the front seat side cover in the order of (2), (3) shown in the figure to disengage the hook and tab.

ac9wzw00001269

8. Pull the front seat side cover in the direction of arrow (4) shown in the figure to disengage the hooks.

ac9wzw00001270

9. Remove the front seat side cover.

10. Disconnect the seat position memory switch connector. (Vehicles with position memory control system)

11. Disconnect the power seat switch connector.

12. Disconnect the lumbar support switch connector. (Vehicles with power lumbar support)

13. Install in the reverse order of removal.

Vehicles without power seat system

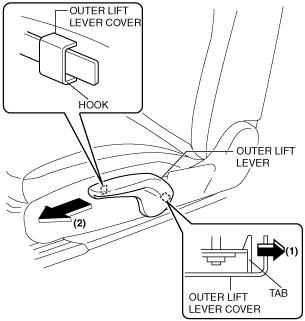

1. Remove the outer lift lever cover in the direction of arrow (1), (2) shown in the figure to disengage the tab and hook.

acxuuw00004033

2. Remove the snap ring.

acxuuw00004034

3. Operate the lift lever in the direction of arrow (3) shown in the figure.

amxzzw00001641

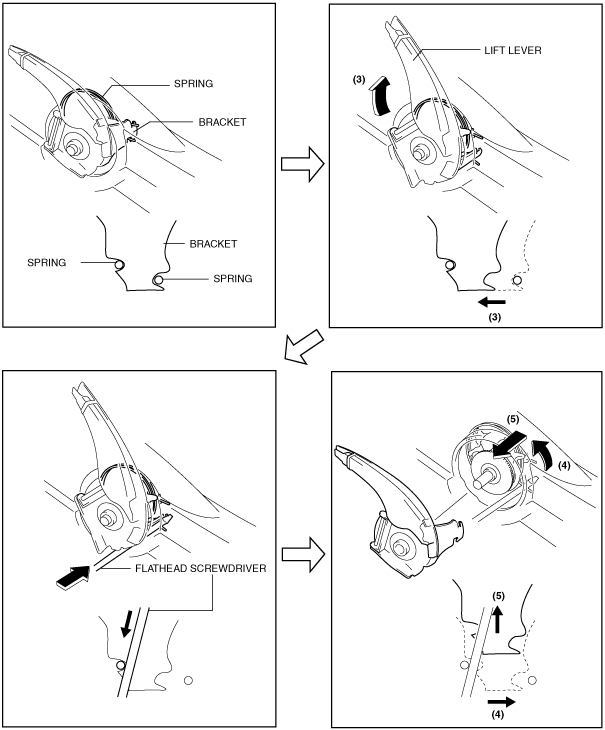

4. Using a flathead screwdriver, hold the spring and return the lift lever a bit to pull it up in the order of (4), (5) shown in the figure.

5. After operating the recliner knob in the upward direction (6), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (7).

acxuuw00004035

6. Remove the screw.

acxuuw00004036

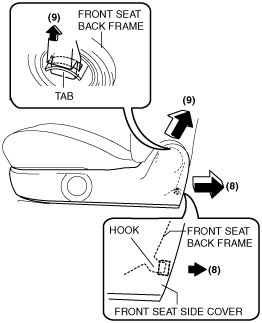

7. Pull the front seat side cover in the order of (8), (9) shown in the figure to disengage the hook and tab.

ac9wzw00002472

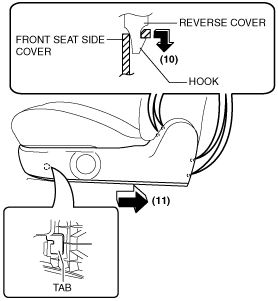

8. Pull the front seat side cover in the order of (10), (11) shown in the figure to disengage the hooks and tab.

ac9wzw00001271

9. Remove the front seat side cover.

10. Install in the reverse order of removal.

Driver side seat (Console side)

Vehicles with power seat system

1. Pull the front seat side cover in the order of (1), (2), (3) shown in the figure to disengage the hooks and clips.

ac9wzw00002473

2. Pull the front seat side cover in the order of (4), (5) shown in the figure to disengage the hook and tab.

ac9wzw00001273

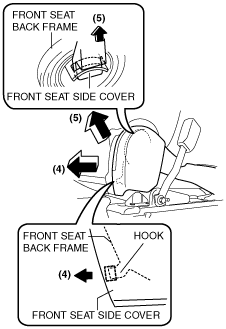

3. Pull the front seat side cover in the direction of arrow (6) shown in the figure to disengage the hooks.

ac9wzw00001274

4. Remove the front seat side cover.

5. Install in the reverse order of removal.

Vehicles without power seat system

1. Remove the screw.

ac9wzw00001275

2. Pull the front seat side cover in the order of (1), (2) shown in the figure to disengage the hook and tab.

ac9wzw00001319

3. Pull the front seat side cover in the direction of arrow (3) shown in the figure to disengage the hooks.

ac9wzw00001320

4. Remove the front seat side cover.

5. Install in the reverse order of removal.

Passenger side seat (Front Door side)

Vehicles with power seat system (Type A)

1. Switch the ignition to off.

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

3. Disconnect the negative battery cable and wait 1 min. or more.

4. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Pull the power seat switch knobs in the direction of arrow, while remove the hooks.

ac9wzw00002438

ac9wzw00002439

7. Pull the front seat side cover in the order of (2), (3) shown in the figure to disengage the hook and tab.

ac9wzw00002440

8. Pull the front seat side cover in the direction of arrow (4) shown in the figure to disengage the hooks.

ac9wzw00002441

9. Remove the front seat side cover.

10. Disconnect the power seat switch connector.

11. Install in the reverse order of removal.

Vehicles with power seat system (Type B)

1. Switch the ignition to off.

2. Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

3. Disconnect the negative battery cable and wait 1 min. or more.

4. Remove the front seat belt lower anchor cover. (See FRONT SEAT REMOVAL/INSTALLATION.)

5. Remove the front seat belt lower anchor. (See FRONT SEAT BELT REMOVAL/INSTALLATION.)

6. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

7. Pull the power seat switch knobs in the direction of arrow, while remove the hooks.

ac9wzw00002403

8. Pull the front seat side cover in the direction of arrow (1), shown in the figure to disengage the hooks and clips. (See Power Seat Switch Wiring Harness Removal Note.) (See Power Seat Switch Wiring Harness Installation Note.)

ac9wzw00002404

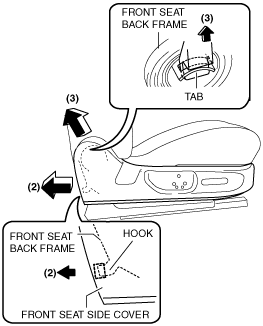

9. Pull the front seat side cover in the order of (2), (3) shown in the figure to disengage the hook and tab.

ac9wzw00002405

10. Pull the front seat side cover in the direction of arrow (4) shown in the figure to disengage the hooks.

ac9wzw00002406

11. Remove the front seat side cover.

12. Disconnect the power seat switch connector.

13. Install in the reverse order of removal.

Vehicles without power seat system

1. After operating the recliner knob in the upward direction (1), cut the area indicated in the figure, then remove the recliner knob in the direction of arrow (2).

ac9wzw00002407

2. Remove the screw.

ac9wzw00002408

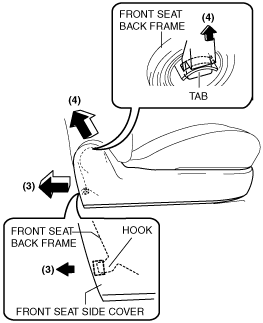

3. Pull the front seat side cover in the order of (3), (4) shown in the figure to disengage the hook and tab.

ac9wzw00002409

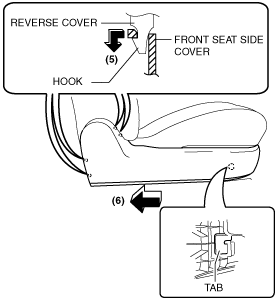

4. Pull the front seat side cover in the order of (5), (6) shown in the figure to disengage the hooks and tab.

ac9wzw00002410

5. Remove the front seat side cover.

6. Install in the reverse order of removal.

Passenger side seat (Console side)

Vehicles with power seat system

1. Pull the front seat side cover in the order of (1), (2), (3) shown in the figure to disengage the hooks and clips.

ac9wzw00002473

2. Pull the front seat side cover in the order of (4), (5) shown in the figure to disengage the hook and tab.

ac9wzw00001273

3. Pull the front seat side cover in the direction of arrow (6) shown in the figure to disengage the hooks.

ac9wzw00001274

4. Remove the front seat side cover.

5. Install in the reverse order of removal.

Vehicles without power seat system

1. Remove the screw.

ac9wzw00001275

2. Pull the front seat side cover in the order of (1), (2) shown in the figure to disengage the hook and tab.

ac9wzw00001319

3. Pull the front seat side cover in the direction of arrow (3) shown in the figure to disengage the hooks.

ac9wzw00001320

4. Remove the front seat side cover.

5. Install in the reverse order of removal.

Power Seat Switch Wiring Harness Removal Note

1. Remove the power seat switch wiring harness from the hook A and B.

ac9wzw00002474

Caution

• The power seat switch wiring harness is clamped at the hook A, B and the marks by the green tape on the power seat switch wiring harness. While actual work, the harness is as blind location but you can move the power seat switch wiring harness from the hook A,B easily by pulling to backward.

Power Seat Switch Wiring Harness Installation Note

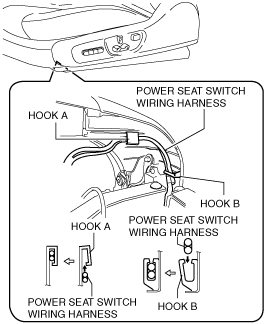

1. After installing the front seat side cover, install the power seat switch wiring harness to hooks A and B and the marks by the green tape on the power seat switch wiring harness shown in the figure.

ac9wzw00002475

Warning

• After installing the front seat side cover, install the power seat switch wiring harness to hooks A and B securely. If the wiring harness is caught between the frame, the wiring harness insulation could be damaged which could cause the power seat to operate incorrectly and result in an accident.
