LONG SLIDER REMOVAL/INSTALLATION

id091300803100

1.  Disconnect the negative battery cable.

2.  Remove the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

ac9uuw00000744

1	Edge cover
2	Long slider cover

4.  Remove the following parts:

(1)  Trunk box (See TRUNK BOX REMOVAL/INSTALLATION.)

(2)  Seat side box (See SEAT SIDE BOX REMOVAL/INSTALLATION.)

(3)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(4)  Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION.)

(5)  Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(6)  Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.)

(7)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

5.  Set the floor covering out of the way.

6.  Remove in the order indicated in the table.

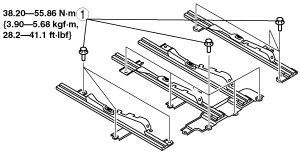

ac9wzw00002481

1	Bolt
2	Long slider

7.  Install in the reverse order of removal.
