POSITION MEMORY CONTROL MODULE INSPECTION
id091300811200
1. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.
2. If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the position memory control module.

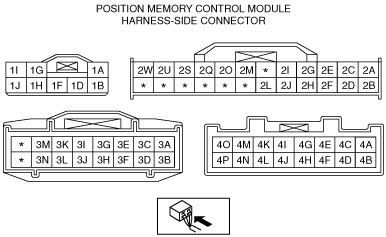

Terminal Voltage Table (Reference)
ac9wzw00001249
|
|
Terminal |
Signal name |
Connected to |
Measured condition |
Voltage (V) |
Inspection item(s) |
|---|---|---|---|---|---|
|
1A
|
Power GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1B
|
Signal GND
|
Body ground
|
Under any condition
|
1.0 or less
|
Related wiring harness
|
|
1D
|
IG1
|
METER 10A fuse
|
Ignition switch is at ON position
|
B+
|
• METER 10A fuse
• Related wiring harness
|
|
Ignition switch is at LOCK or ACC position
|
1.0 or less
|
||||
|
1F
|
Power supply
|
ROOM 15A fuse
|
Under any condition
|
B+
|
• ROOM 15A fuse
• Related wiring harness
|
|
1G
|
Power supply
|
P.SEAT R 40A fuse
|
Under any condition
|
B+
|
• P.SEAT R 40A fuse
• Related wiring harness
|
|
1H
|
Keyless entry signal
|
BCM
|
Because this terminal is for communication, good/no good judgment by terminal voltage is not possible.
|
• BCM
• Related wiring harness
|
|
|
1I
|
HS-CAN+
|
-
|
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
|
||
|
1J
|
HS-CAN-
|
-
|
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
|
||
|
2A
|
Power outer mirror switch (vertical)
|
Power outer mirror switch
|
Press the up switch to upward
|
1.0 or less
|
• Power outer mirror switch
• Related wiring harness
|
|
Press the down switch to downward
|
|||||
|
Other
|
5.0
|
||||
|
2B
|
Power outer mirror switch (mirror select)
|
Power outer mirror switch
|
Select the left side mirror
|
B+
|
• Power outer mirror switch
• Related wiring harness
|
|
Select the right side mirror
|
|||||
|
Other
|
1.0 or less
|
||||
|
2C
|
Power outer mirror switch (horizontal)
|
Power outer mirror switch
|
Press the right switch to rightward
|
1.0 or less
|
• Power outer mirror switch
• Related wiring harness
|
|
Press the left switch to leftward
|
|||||
|
Other
|
5.0
|
||||
|
2D
|
ACC
|
MIRROR 7.5 A fuse
|
Ignition switch is at ACC position
|
B+
|
• MIRROR 7.5 A fuse
• Related wiring harness
|
|
Ignition switch is at LOCK or ON position
|
1.0 or less
|
||||
|
2E
|
GND input
|
Power outer mirror switch
|
Under any condition
|
1.0 or less
|
• Power outer mirror switch
• Related wiring harness
|
|
2F
|
Power outer mirror motor pulse (vertical)
|
Power outer mirror position sensor RH
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Power outer mirror position sensor RH
• Related wiring harness
|
|
Low output: 1.0 or less
|
|||||
|
Power outer mirror motor (vertical) stopped
|
1.0 or less or 5.0
|
||||
|
2G
|
Power outer mirror position sensor power supply
|
Power outer mirror position sensor
|
Power outer mirror motor moving
|
B+
|
• Power outer mirror position sensor
• Related wiring harness
|
|
Power outer mirror motor stopped
|
1.0 or less
|
||||
|
2H
|
Power outer mirror motor pulse (horizontal)
|
Power outer mirror position sensor RH
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Power outer mirror position sensor RH
• Related wiring harness
|
|
Low output: 1.0 or less
|
|||||
|
Power outer mirror motor (horizontal) stopped
|
1.0 or less or 5.0
|
||||
|
2I
|
GND input
|
Power outer mirror position sensor
|
Under any condition
|
1.0 or less
|
• Power outer mirror position sensor
• Related wiring harness
|
|
2J
|
Power outer mirror motor pulse (vertical)
|
Power outer mirror position sensor LH
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Power outer mirror position sensor LH
• Related wiring harness
|
|
Low output: 1.0 or less
|
|||||
|
Power outer mirror motor (vertical) stopped
|
1.0 or less or 5.0
|
||||
|
2L
|
Power outer mirror motor pulse (horizontal)
|
Power outer mirror position sensor LH
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Power outer mirror position sensor LH
• Related wiring harness
|
|
Low output: 1.0 or less
|
|||||
|
Power outer mirror motor (horizontal) stopped
|
1.0 or less or 5.0
|
||||
|
2M
|
Power outer mirror motor output (upward)
|
Power outer mirror RH
|
While power outer mirror motor is moving to upward
|
B+
|
• Power outer mirror RH
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
2O
|
Power outer mirror motor output (downward/rightward)
|
Power outer mirror RH
|
While power outer mirror motor is moving to downward
|
B+
|
• Power outer mirror RH
• Related wiring harness
|
|
While power outer mirror motor is moving to rightward
|
|||||
|
Other
|
1.0 or less
|
||||
|
2Q
|
Power outer mirror motor output (leftward)
|
Power outer mirror RH
|
While power outer mirror motor is moving to leftward
|
B+
|
• Power outer mirror RH
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
2S
|
Power outer mirror motor output (upward)
|
Power outer mirror LH
|
While power outer mirror motor is moving to upward
|
B+
|
• Power outer mirror LH
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
2U
|
Power outer mirror motor output (downward/rightward)
|
Power outer mirror LH
|
While power outer mirror motor is moving to downward
|
B+
|
• Power outer mirror LH
• Related wiring harness
|
|
While power outer mirror motor is moving to rightward
|
|||||
|
Other
|
1.0 or less
|
||||
|
2W
|
Power outer mirror motor output (leftward)
|
Power outer mirror LH
|
While power outer mirror motor leftward
|
B+
|
• Power outer mirror LH
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
3A
|
Slide switch input (forward)
|
Driver-side power seat switch
|
Press the slide switch to forward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3B
|
Slide switch input (backward)
|
Driver-side power seat switch
|
Press the slide switch to backward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3C
|
Tilt switch input (up)
|
Driver-side power seat switch
|
Press the tilt switch to up
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3D
|
Tilt switch input (down)
|
Driver-side power seat switch
|
Press the tilt switch to down
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3E
|
Lift switch input (up)
|
Driver-side power seat switch
|
Press the lift switch to up
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3F
|
Lift switch input (down)
|
Driver-side power seat switch
|
Press the lift switch to down
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3G
|
Recliner switch input (forward)
|
Driver-side power seat switch
|
Press the recliner switch to forward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3H
|
Recliner switch input (backward)
|
Driver-side power seat switch
|
Press the recliner switch to backward
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3I
|
Signal GND input
|
Driver-side power seat switch
|
Under any condition
|
1.0 or less
|
• Driver-side power seat switch
• Related wiring harness
|
|
3J
|
Signal GND input
|
Position memory switch
|
Under any condition
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
3K
|
Set switch input
|
Position memory switch
|
Press the set switch
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3L
|
Memory switch 1 input
|
Position memory switch
|
Press the memory switch 1
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3M
|
Memory switch 2 input
|
Position memory switch
|
Press the memory switch 2
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
3N
|
Memory switch 3 input
|
Position memory switch
|
Press the memory switch 3
|
1.0 or less
|
• Position memory switch
• Related wiring harness
|
|
Other
|
5.0
|
||||
|
4A
|
Slider motor output (forward)
|
Slider motor
|
While slider motor is moving to forward
|
B+
|
• Slider motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4B
|
Slider motor output (backward)
|
Slider motor
|
While slider motor is moving to backward
|
B+
|
• Slider motor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4C
|
Tilt motor output (up)
|
Tilt motor
|
While tilt motor is moving to up
|
B+
|
• Tilt motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4D
|
Tilt motor output (down)
|
Tilt motor
|
While tilt motor is moving to down
|
B+
|
• Tilt motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4E
|
Lift motor output (up)
|
Lift motor
|
While lift motor is moving to up
|
B+
|
• Lift motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4F
|
Lift motor output (down)
|
Lift motor
|
While lift motor is moving to down
|
B+
|
• Lift motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4G
|
Recliner motor output (forward)
|
Recliner motor
|
While recliner motor is moving to forward
|
B+
|
• Recliner motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4H
|
Recliner motor output (backward)
|
Recliner motor
|
While recliner motor is moving to backward
|
B+
|
• Recliner motor and position sensor
• Related wiring harness
|
|
Other
|
1.0 or less
|
||||
|
4I
|
Slider position sensor power supply
|
Slider position sensor
|
Slider motor moving
|
B+
|
• Slider position sensor
• Related wiring harnesses
|
|
Slider motor stopped
|
1.0 or less
|
||||
|
4J
|
Slider motor pulse
|
Slider position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Slider position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Slider motor stopped
|
1.0 or less or 5.0
|
||||
|
4K
|
Tilt position sensor power supply
|
Tilt position sensor
|
Tilt motor moving
|
B+
|
• Tilt motor and position sensor
• Related wiring harnesses
|
|
Tilt motor stopped
|
1.0 or less
|
||||
|
4L
|
Tilt motor pulse
|
Tilt position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Tilt motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Tilt motor stopped
|
1.0 or less or 5.0
|
||||
|
4M
|
Lift position sensor power supply
|
Lift position sensor
|
Lift motor moving
|
B+
|
• Lift motor and position sensor
• Related wiring harnesses
|
|
Lift motor stopped
|
1.0 or less
|
||||
|
4N
|
Lift motor pulse
|
Lift position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Lift motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Lift motor stopped
|
1.0 or less or 5.0
|
||||
|
4O
|
Recliner position sensor power supply
|
Recliner position sensor
|
Recliner motor moving
|
B+
|
• Recliner motor and position sensor
• Related wiring harnesses
|
|
Recliner motor stopped
|
1.0 or less
|
||||
|
4P
|
Recliner motor pulse
|
Recliner position sensor
|
Measure the waveform while driving motor operation using the oscilloscope.
|
High output: 4.8 or more
|
• Recliner motor and position sensor
• Related wiring harnesses
|
|
Low output: 1.0 or less
|
|||||
|
Recliner motor stopped
|
1.0 or less or 5.0
|
||||
