FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION

id091300911800

Warning

•  Handling the front seats improperly can accidentally deploy the side air bag, which may seriously injure you. Read air bag system service warnings and cautions before handling the front seats. (See AIR BAG SYSTEM SERVICE WARNINGS) (See AIR BAG SYSTEM SERVICE CAUTIONS)

Caution

•  After removing a front seat, do not operate the slider lever. If the slider lever is operated, the left and right slide positions will deviate, and the slide adjuster may be damaged after the front seat is installed.

•  Verify that there are no malfunctions in the sliding mechanism after installing a front seat.

•  When performing the procedure with a front seat removed from the vehicle, perform the procedure on a clean rag so as not to damage or soil the seat.

1.  Switch the ignition to off.

2.  Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION [MZI-3.7].)

3.  Disconnect the negative battery cable and wait 1 min or more.

4.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

5.  Slide hook A in the direction of arrow (1), (2), (3) shown in the figure to detach it from hook B.

ac9wzw00001294

6.  Cut the band securing the seat warmer module (Vehicles with seat warmer), side air bag and lumber support (Vehicles with power lumber support) wiring harness.

7.  Disconnect the seat warmer (Vehicles with seat warmer), side air bag and lumber support (Vehicles with power lumber support) connector.

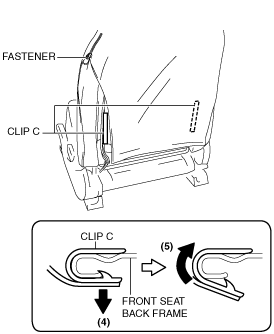

8.  Remove the clip C from the front seat back frame in the direction of arrow (4), (5) shown in the figure.

ac9wzw00001295

9.  Remove the bolt and nut, remove the front seat back component.

ac9wzw00001296

10.  Install in the reverse order of removal.
