FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

id091400800400

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION.)

(2)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(4)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

(5)  Front door module (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

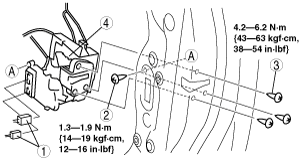

3.  Remove in the order indicated in the table.

ac9uuw00002308

1	Connector
2	Screw A
3	Screw B
4	Front door latch and lock actuator

4.  Install in the reverse order of removal.
