KEYLESS CONTROL MODULE REMOVAL/INSTALLATION [ADVANCED KEYLESS ENTRY AND START SYSTEM]

id0914008063z6

Note

•  If the keyless control module is replaced, always perform the following procedure.

Without immobilizer system

―  Keyless control module configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

―  Advanced key programming (See CLEARING ADVANCED KEY [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

―  Steering lock unit programming (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

With immobilizer system

―  Keyless control module configuration (See KEYLESS CONTROL MODULE CONFIGURATION [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

―  Advanced key programming (See CLEARING ADVANCED KEY [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

―  Steering lock unit programming (See STEERING LOCK UNIT ID CODE REGISTRATION [ADVANCED KEYLESS ENTRY AND START SYSTEM].)

―  Immobilizer system resetting (with immobilizer system) (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM].) (See IMMOBILIZER SYSTEM COMPONENT REPLACEMENT/KEY ADDITION AND CLEARING [KEYLESS ENTRY SYSTEM].)

1.  Disconnect the negative battery cable.

2.  Remove the dashboard under cover (Driver side). (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

3.  Remove the auto light/wiper control module. (Vehicles with auto light/wiper system) (See AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION.)

4.  Remove in the order indicated in the table.

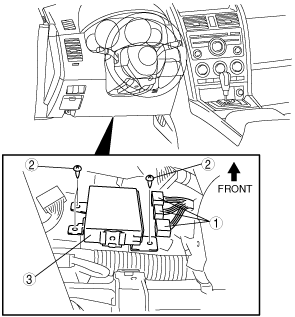

ac9uuw00001879

1	Connector
2	Screw
3	Keyless control module

5.  Install in the reverse order of removal.
