THEFT-DETERRENT CONTROL MODULE INSPECTION

id091400820900

1.  Remove the following parts:

(1)  Dashboard under cover (Passenger side) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)
(2)  Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

2.  Measure the voltage according to the terminal voltage table.

•  If the voltages cannot be verified as indicated in the terminal voltage table, inspect the parts under “Inspection item(s)”.
―  If the system does not work normally even though the inspection items or related wiring harnesses do not have any malfunction, replace the theft-deterrent control module.


Terminal Voltage Table (Reference)

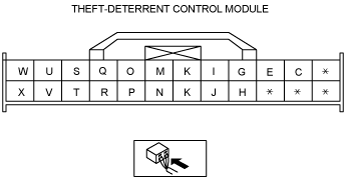

am2zzw00000596

Terminal

Signal name

Connected to

Measurement condition

Voltage (V)

Inspection item(s)
C
•  Intruder sensor signal
•  Theft-deterrent siren signal
•  Intruder sensor
•  Theft-deterrent siren
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
E
Start knob (push switch)
Steering lock unit
Start knob is pushed
B+
•  Steering lock unit
•  Related wiring harnesses
Other
1.0 or less
H
Bonnet latch switch signal
Bonnet latch switch
Bonnet open (Bonnet latch switch off)
Wave pattern (See Pattern 1.)
•  Bonnet latch switch
•  Related wiring harnesses
Bonnet closed (Bonnet latch switch on)
1.0 or less
I
CAN_L
-
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
J
GND
Ground
Under any condition
1.0 or less
•  Related wiring harnesses
K
CAN_H
-
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
Q
Serial communication
Instrument cluster
Terminal used for communication therefore determination based on terminal voltage inspection not possible.
S
Security light on/off
Instrument cluster
Security light on
1.0 or less
•  Instrument cluster
•  Related wiring harnesses
Security light off
B+
T
Lock/unlock signal
Door lock-link switch
All doors except the driver's door are locked
Wave pattern*1 (See Pattern 2.)
•  Door lock-link switch (Except driver's side)
•  Related wiring harnesses
Wave pattern*2 (See Pattern 3.)
Any door except the driver's door is unlocked
1.0 or less
U
IG 1
METER 10 A fuse
IG ON
B+
•  METER 10 A fuse
•  Ignition switch
•  Related wiring harnesses
IG OFF
1.0 or less
W
Power supply
BCM
Under any condition
B+
•  Related wiring harnesses
•  BCM
•  Room 15 A fuse
X
Hazard warning switch signal
BCM
Hazard warning switch on
1.0 or less
•  BCM
•  Related wiring harnesses
Hazard warning switch off
Approx. 4.6

*1  :Vehicles without PLG
*2  :Vehicles with PLG

Generated pulse (reference)


Pattern 1

am2zzw00005204
•  Oscilloscope setting: 1 V/DIV (Y): 1 ms/DIV (X), DC range


Pattern 2

am2zzw00005206
•  Oscilloscope setting: 1 V/DIV (Y): 5 ms/DIV (X), DC range


Pattern 3

ac9wzw00001203
•  Oscilloscope setting: 1 V/DIV (Y): 1 ms/DIV (X), DC range
