SLIDING SUNROOF SYSTEM WIRING DIAGRAM

id091500100400

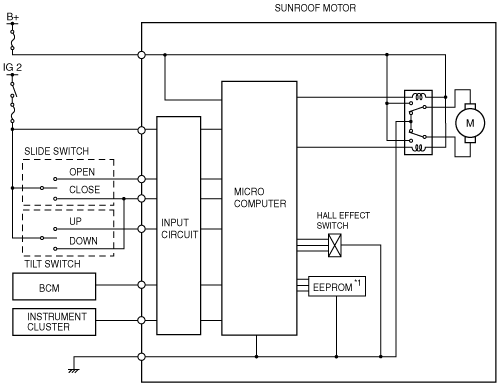

With Exterior Open/close Function

ac9wzn00000623

*1: Electronically Erasable and Programmable Read Only Memory

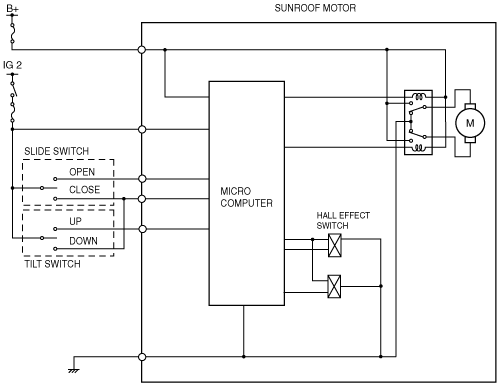

Without Exterior Open/close Function

ac9wzn00000398
