ROOM LIGHT CONTROL SYSTEM OPERATION

id091800101200

Conditions before operation

(Conditions which must be satisfied)

Operation condition

Interior light

Cancel condition

(When any condition satisfied)

Illumination time

Brightness

•  Turn the ignition switch to the LOCK or ACC position.

•  All doors are closed.
(All door switches off)

Any door open.

(Any door switch on)

Approx. 30 min

100 %

•  All doors are closed except liftgate.
(All door switches off)

•  After illumination time.^*1

•  Key extracted from steering lock.
(Key reminder switch is off.)

•  All doors are closed.
(All door switches off)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

Driver’s door lock knob is unlocked.

(Door lock-link switch is in unlock position.)

Approx. 30 s

100 %

•  Turn the ignition switch to the ON position.

•  Any door open.
(Any door switch on)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.

•  Key inserted into steering lock.
(Key reminder switch is on.)

•  All doors are closed.
(All door switches off)

Key extracted from steering lock.

(Key reminder switch is off.)

Approx. 15 s

100 %

•  Turn the ignition switch to the ON position.

•  Any door open.
(Any door switch on)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.

•  Turn the ignition switch to the LOCK or ACC position.

•  Any door is open.
(Any door switches on)

•  Driver’s door lock knob is unlocked.
(Door lock-link switch is in unlock position.)

All doors are closed.

(All door switches off)

Approx. 15 s

60 %

•  Turn the ignition switch to the ON position.

•  Any door open.
(Any door switch on)

•  Driver’s door lock knob is locked.
(Door lock-link switch is in lock position.)

•  After illumination time.

Conditions before operation (Conditions which must be satisfied)	Operation condition	Interior light	Cancel condition (When any condition satisfied)
• Turn the ignition switch to the LOCK or ACC position. • All doors are closed. (All door switches off)	Any door open. (Any door switch on)	Approx. 30 min	100 %	• All doors are closed except liftgate. (All door switches off) • After illumination time.^*1
• Key extracted from steering lock. (Key reminder switch is off.) • All doors are closed. (All door switches off) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.)	Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	Approx. 30 s	100 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.
• Key inserted into steering lock. (Key reminder switch is on.) • All doors are closed. (All door switches off)	Key extracted from steering lock. (Key reminder switch is off.)	Approx. 15 s	100 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.
• Turn the ignition switch to the LOCK or ACC position. • Any door is open. (Any door switches on) • Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	All doors are closed. (All door switches off)	Approx. 15 s	60 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.

*1 :After interior light is turned off according to this cancel condition, the light will illuminate again when either of the following conditions are satisfied:

• After all doors are closed, then any door is reopened.

(After all door switches are off, any door switch is on)

• After all doors are closed, then ignition switch is at the ON position. (Ignition switch ON)

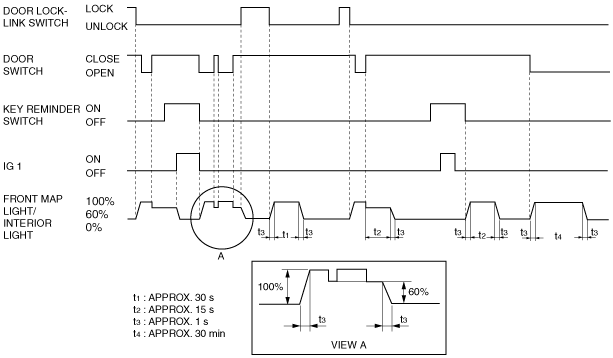

ac9wzn00000583

Conditions before operation (Conditions which must be satisfied)	Operation condition	Interior light		Cancel condition (When any condition satisfied)
	Operation condition	Illumination time	Brightness	Cancel condition (When any condition satisfied)
• Turn the ignition switch to the LOCK or ACC position. • All doors are closed. (All door switches off)	Any door open. (Any door switch on)	Approx. 30 min	100 %	• All doors are closed except liftgate. (All door switches off) • After illumination time.^*1
• Key extracted from steering lock. (Key reminder switch is off.) • All doors are closed. (All door switches off) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.)	Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	Approx. 30 s	100 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.
• Key inserted into steering lock. (Key reminder switch is on.) • All doors are closed. (All door switches off)	Key extracted from steering lock. (Key reminder switch is off.)	Approx. 15 s	100 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.
• Turn the ignition switch to the LOCK or ACC position. • Any door is open. (Any door switches on) • Driver’s door lock knob is unlocked. (Door lock-link switch is in unlock position.)	All doors are closed. (All door switches off)	Approx. 15 s	60 %	• Turn the ignition switch to the ON position. • Any door open. (Any door switch on) • Driver’s door lock knob is locked. (Door lock-link switch is in lock position.) • After illumination time.
