FRONT COMBINATION LIGHT REMOVAL/INSTALLATION

id091800800700

Warning

•  Incorrect servicing of the discharge headlights could result in electrical shock. Before servicing the discharge headlights, always refer to the discharge headlight service warnings. (See DISCHARGE HEADLIGHT SERVICE WARNINGS.)

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the fastener.

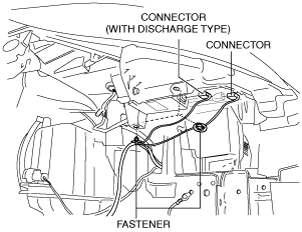

ac9wzw00000980

4.  Remove the connector.

5.  Remove in the order indicated in the table.

ac9wzw00000981

1	Bolt A
2	Fastener
3	Front combination light
4	Bolt B
5	Protector

6.  Install in the reverse order of removal.(See Front combination light installation note.)

7.  Adjust the headlight aiming. (See HEADLIGHT AIMING.)

Front combination light installation note

Caution

•  When replacing the front combination light, refer to the following disassembly figure and verify that parts are assembled correctly. If a part has not been assembled correctly, it could cause problems such as water leakage or fogging in the housing.

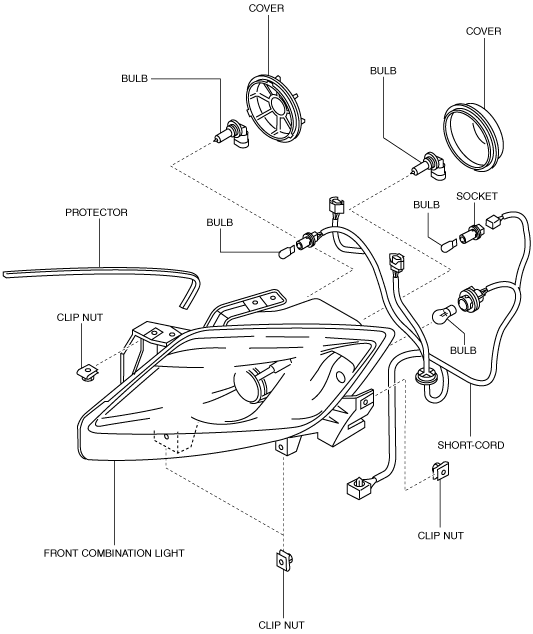

ac9wzw00003291

Note

•  Parts necessary for assembly vary depending on the vehicle's manufacturing period and specifications.
