LIGHT SWITCH INSPECTION
id091800802900
1. Disconnect the negative battery cable.
2. Remove the lower column cover. (See COLUMN COVER REMOVAL/INSTALLATION.)
3. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION.)
4. Verify that the continuity between the light switch terminals is as indicated in the table.

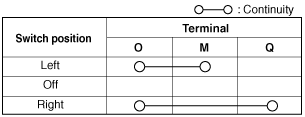

Light Switch (LH) (Vehicle With Auto Light)
• If not as indicated in the table, replace the light switch.
Turn switch

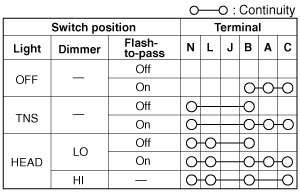

Light Switch (LH) (Vehicle without auto light)
• If not as indicated in the table, replace the light switch.
Turn switch

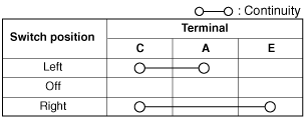

Light Switch (RH) (Vehicle With Auto Light)
• If not as indicated in the table, replace the light switch.
Turn switch
Light Switch (RH) (Vehicle Without Auto Light)
• If not as indicated in the table, replace the light switch.
Turn switch
