HEADLIGHT LEVELING SWITCH INSPECTION

id091800803700

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Dashboard under cover (Driver side) (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

(2)  Bonnet release lever (See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)

(3)  Headlight leveling switch (See HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION.)

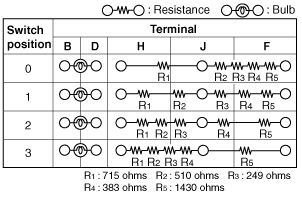

3.  Verify that the resistance and continuity between the headlight leveling switch terminals is as indicated in the table.

ac9uuw00002467

•  If not as indicated in the table, replace the headlight leveling switch.

ac9wzw00001719
