REAR FOG LIGHT REMOVAL/INSTALLATION

id091800805100

1.  Disconnect the negative battery cable.

2.  Remove the fastener.

ac9wzw00001297

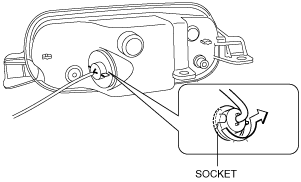

3.  Remove the socket.

ac9wzw00001298

4.  Remove the screws.

ac9wzw00001299

5.  Remove the rear fog light.

6.  Install in the reverse order of removal.
