HEADLIGHT CLEANER HOSE REMOVAL/INSTALLATION

id091900803100

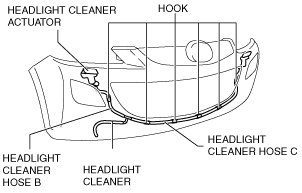

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Disconnect the headlight cleaner hose A from the joint pipe.

ac9wzw00001097

4.  Disconnect the headlight cleaner hose B from the headlight cleaner actuator.

5.  Disconnect the headlight cleaner hose C from the headlight cleaner actuator.

6.  Remove the headlight cleaner hose C from the hooks.

7.  Install in the reverse order of removal.
