HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION

id091900803300

1.  Disconnect the negative battery cable.

2.  Remove in the order indicated in the table.

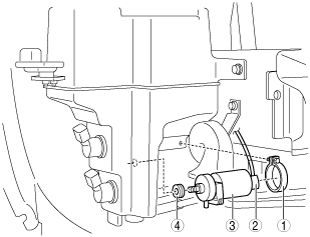

ac9wzw00001251

1	Bracket
2	Connector
3	Headlight cleaner motor
4	Grommet

3.  Install in the reverse order of removal.
