HEADLIGHT CLEANER CONTROL MODULE REMOVAL/INSTALLATION

id091900806000

1.  Disconnect the negative battery cable.

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

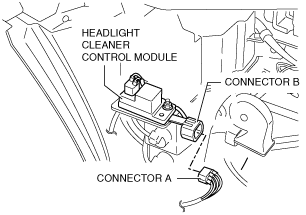

3.  Disconnect the connector A and connector B.

ac9wzw00001254

4.  Remove the nut, then remove the headlight cleaner control module.

ac9wzw00001255

5.  Install in the reverse order of removal.
