REAR MOUNT CAMERA CONSTRUCTION/OPERATION

id092000109800

• The rear mount camera is located in the liftgate.

ac9wzn00000444

• Super wide angle lens that can shoot a broad spectrum has been combined with a small (1/4 in.) color CCD^*1 camera which has a high-sensitivity CCD image element.

*1 :Charge Coupled Device

Displayable Range

Note

• Some of the guidelines for the back camera are displayed and not displayed on the screen depending on the vehicle's period of manufacture.

• The displayable range varies depending on the vehicle and road conditions.

• The displayable range is limited. Objects under the bumper or around the bumper ends cannot be displayed.

• The distance appearing in the displayed image is different from the actual distance because the rear mount camera is equipped with a specific lens.

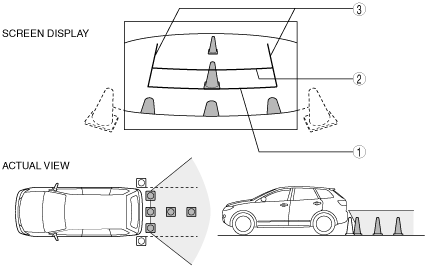

ac9wzn00000445

No.

Line

color

Description

1

Distance indication line

Red

•  This line indicate the position about 0.5 m {1.64 ft} from the end of rear bumper.

2

Distance indication line

Yellow

•  This line indicate the position about 1 m {3.28 ft} from the end of rear bumper.

3

Vehicle width progression indication line

Green

•  These lines indicate the vehicle width progression.

No.	Line	color	Description
1	Distance indication line	Red	• This line indicate the position about 0.5 m {1.64 ft} from the end of rear bumper.
2	Distance indication line	Yellow	• This line indicate the position about 1 m {3.28 ft} from the end of rear bumper.
3	Vehicle width progression indication line	Green	• These lines indicate the vehicle width progression.

• Same optionally installed vehicle accessories, such as illuminating parts or parts made of reflective material, may be picked up by the rear mount camera. Do not install any optional parts or accessories that could interfere with the rear mount camera display.

• It may be difficult to see the display under the following conditions; however, it does not indicate a malfunction:

― In darkened areas.

― When the temperature around the lens is high/low.

― When the camera is wet such as on a rainy day or during period of high humidity.

― When foreign material such as mud is stuck around the camera.

― When the camera lens reflects sunlight or headlight beams.

• If the camera picks up a high-intensity light such as sunlight reflected off the vehicle body, a bright belt (light line) may appear on the display (Smear phenomenon).

• Image display may be delayed if the temperature around the rear mount camera is low.
