CAR-NAVIGATION UNIT REMOVAL/INSTALLATION

id092000801000

1.  Disconnect the negative battery cable.

2.  Remove the following parts:

(1)  Front console box mat (See FRONT CONSOLE BOX MAT REMOVAL/INSTALLATION.)

(2)  Indicator panel (See INDICATOR PANEL REMOVAL/INSTALLATION.)

(3)  Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Center panel (See CENTER PANEL REMOVAL/INSTALLATION.)

3.  Remove in the order indicated in the table.

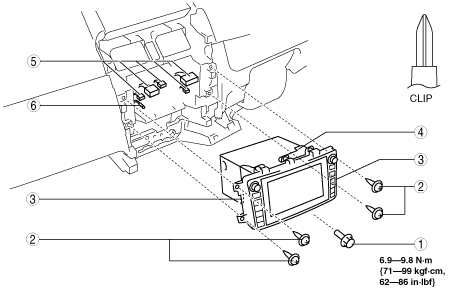

ac9wzw00001014

1	Bolt
2	Screw
3	Clip
4	Car-navigation unit
5	Connector
6	Antenna jack

4.  Install in the reverse order of removal.

Caution

•  When installing the car-navigation unit, make sure that the wiring harness and antenna feeder are not caught between the unit and dashboard. If the wiring harness or the antenna feeder is caught between the unit and dashboard, it may cause malfunctions.
