STEERING SWITCH REMOVAL/INSTALLATION

id092000822300

Caution

•  A removed steering cover cannot be reused as it can no longer be secured after the push nuts are removed due to the possibility of the steering cover pins being damaged. Do not remove the push nuts except when replacing the steering switch and the steering wheel.

1.  Disconnect the negative battery cable and wait for 1 min or more.

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3.  Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

4.  Remove the wiring harness from the hook.

ac9wzw00001007

5.  Remove the screw.

ac9wzw00001534

6.  Remove the push nuts. (See Push Nuts Installation Note.)

ac9wzw00001535

7.  Remove the steering cover tabs from the steering wheel.

ac9wzw00001124

8.  Remove the steering cover.

ac9wzw00001536

9.  Remove the screw.

ac9wzw00001126

10.  Disconnect the connector.

11.  Remove the steering switch pins from the steering wheel.

ac9wzw00001009

12.  Remove the steering switch.

13.  Install in the reverse order of removal.

Push Nuts Installation Note

1.  Install the push nut positioned in the direction shown in the figure.

ac9wzw00001537

2.  When installing the push nut, install it using the tool shown in the figure.

Caution

•  If a push nut is twisted when it is inserted, the steering cover pin can be damaged and the steering cover cannot be secured. When inserting the push nuts, insert the nuts at a straight angle using the tool shown in the figure.

ac9wzw00001541

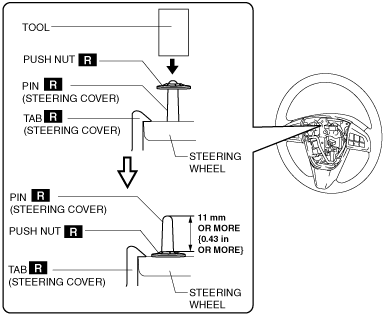

3.  After tightening the push nuts, verify that the steering cover pin and tab are as shown in the figure.

ac9wzw00001540
