STEERING SWITCH INSPECTION

id092000822400

Without Bluetooth System

1. Disconnect the negative battery cable and wait for 1 min or more.

2. Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION.)

3. Disconnect the steering switch connector.

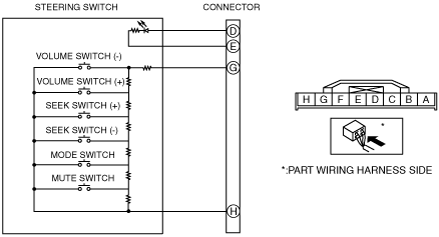

4. Verify the resistance between the steering switch terminals.

ac9wzw00000901

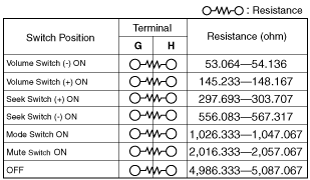

• If not within the specification, replace the steering switch.

ac9wzw00000902

5. Apply battery positive voltage to steering switch terminal D, and connect terminal E to ground.

ac9wzw00000903

6. Verify that the LED illuminates.

• If the LED does not illuminate, replace the steering switch.

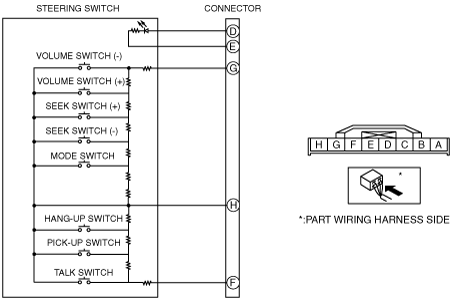

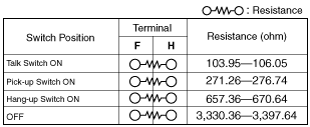

With Bluetooth System
