IGNITION SWITCH INSPECTION

id092100800100

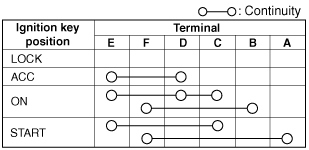

1.  Verify that the continuity between the ignition switch terminals is as indicated in the table.

acxuuw00002094

•  If not as indicated in the table, replace the ignition switch.

acxuuw00002095
